PortableLift

Effortless Moving of Your Models

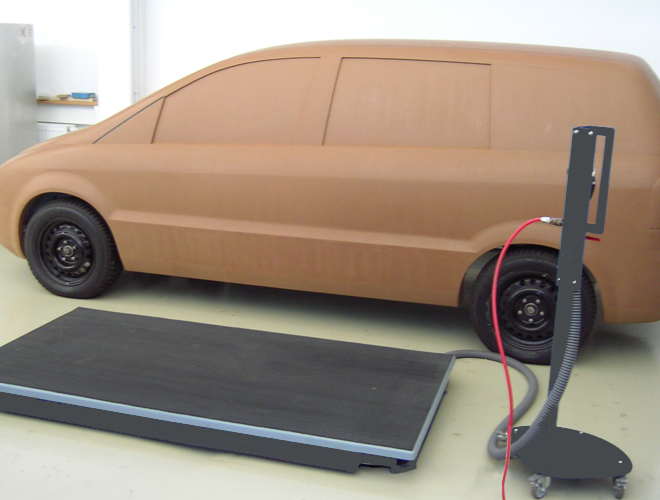

Kolb PortableLifts let you place your full-scale clay models wherever you want to work on them.

  • Moving on integrated air pads
  • Easy to handle and flexible
  • Moving of full-scale model possible by a single person
  • The PortableLift is available with lifting capacities of 2.8 t and 3.2 t.

PortableLift Fact Sheet

Impressions

PortableLift
PortableLift
PortableLift
PortableLift

The PortableLift is available in 2 alternatives:

PortableLift 2.8 t

  • Lifting capacity: 2.8 t
  • Max. lifting height: 950 mm
  • Effective stroke: approx. 825 mm
  • Headroom: min. 150 mm
  • Overall height max.: 950 mm
  • Base body width: approx. 1,100 mm
  • Base body length: approx. 2,000 mm
  • Pneumatic connection: 8 bar (min. 6 bar)

PortableLift 3.2 t

  • Lifting capacity: 3,2 t
  • Max. lifting height: 950 mm
  • Effective stroke: approx. 825 mm
  • Headroom: min. 150 mm
  • Overall height max.: 950 mm
  • Base body width: approx. 1,100 mm
  • Base body length: approx. 2,000 mm
  • Pneumatic connection: 8 bar (min. 6 bar)

Please note

Our studio equipment is not in stock, for an offer please send us an “inquiry” via the shopping cart or contact our staff directly at sales@kolb-technology.com.

The stated delivery time is an approximate value, please refer to our offer for the actual delivery time.
